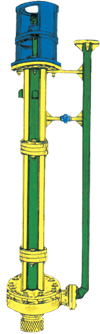

| Submerged Vertical Process Pumps 01 |
 |
|
|
for Hnadling Corrosive & Non Corrosive Chemicals
"Phosphoric Acid Plant"
H3 P04, H2SIF6, H2S04,
HF and their Mixtures
"Gas Washing Plant"
Scrubbed Liquids Containing F,
CL, S02, Ammonia
"Water Treatment Plant"
Anu Types of Acidic Water lifting
"M.S. Vertical Pump"
are used for Transfer of Sulphuric Acid 98%
Olum
Cloro
Neptha
ADVANTAGES OF VERTICAL SUBMERGED PUMP:
- No Mechanical Seal Stuffing Box Required
- All the Wet Parts are in P.P. & Teflon
Construction with Stand Corrosion & Erosion
- No Foot Valve Required to lift from negative suction
- No Leakages Problem just like gland or mechanical Seal
- Normal Maintenance
- Easy Eliegment
OUT STANDING FEATURES:
- In P.P. Pump shaft are Quoted with P.P. Sleeve Supported in
Upper Part by heavy ball Bearing and in the Lower Part by a
Bearing Bush and According to the Shaft Length.
They are Provided with an intermediate Bush.
- In M.S. or S.S. pump Shaft are EN-8 or SS-316
- Impeller are Semi-Open type Hydraulically Balanced by back wanes or in the case of Laege Impeller Diameters by Balancing Holes and Wear Rings both sides
- Reliable Fixing of impeller on the shaft by Direct Thread
- Heavy Dutty Bearing Bracket
- Centrifugal, Quiet, Vibration Free
AFTER SALES SERVICE:
Our Service Technicians can meet you any where in India at a short notice. Spares are available ready stock Our constant endeauour is to ensure that a "WaterTech" Pump never causes you downtime once you have put it to Operation.
MATERIAL OF CONSTRUCTION:
Poly Propylene, M.S., C.I., S.S.
RANGE OF COVERAGE:
- Head : Up to 40 MTRS
- Flow : Up to 50M3 / HR
- Motor HP : 1HPto7.5HP
PERFORMANCE CURVE:
- 2HP/1440RPM
- 3HP/1440RPM
- 5HP/1440RPM
- BEP
MEASUREMENT CUM INSTALLATION GUIDE:
from 4" to 10" Space According to sludge or Disposal/Settling of particals
MONO / BARE PUMPS is also available.
|
|
